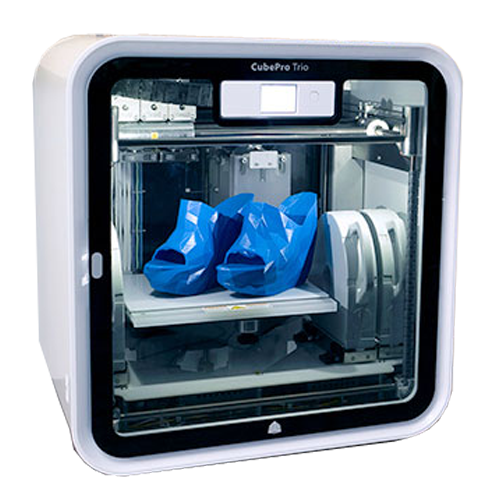

CUBEPRO

SPESIFIKASI



WEIGHT & DIMENSIONS


CubePro dimensions (uncrated)

22.75(w) x 23.25(h) x 22.75(d) inches
57.8(w) x 59.1(h) x 57.8(d) cm

CubePro weight (Single head printer)

90.7 lb / 41 kg

CubePro weight (Duo – Double head printer)

94.3 lb / 43 kg

CubePro weight (Trio – Triple head printer)

98 lb / 44 kg

Maximum build size (Single head printer)

11.2(w) x 9.06(h) x 10.6(d) inches
28.54(w) x 23(h) x 27.04(d) cm

Maximum build size (Duo – Double head printer)

9.56(w) x 9.06(h) x 10.6(d) inches
24.29(w) x 23(h) x 27.04(d) cm

Maximum build size (Trio – Triple head printer)

7.89(w) x 9.06(h) x 10.6(d) inches
20.04(w) x 23(h) x 27.04(d) cm



Z AXIS RESOLUTION


All models

0.100mm (0.004″ / 100 microns)



LAYER THICKNESS


All models

70 microns, 200 microns and 300 microns for fast mode. Available for all three models.



PRINT TOLERANCE


All models

X and Y axis ± 1% dimension or ± 0.2mm (0.008″ / 200mm microns) whichever is greater. Z axis ± half the processed z resolution. Shrinkage and warpage can occur on models and is purely geometry dependent.



PRINT SPEED EXTRUDED VOLUME


All models

Maximum 15mm (9/16″) per second and polymer dependent



POWER REQUIREMENTS


All models

100 – 240v AC

MAXIMUM OPERATING TEMPERATURE AT EXTRUDER TIP

All models

536°F / 280°C

SUPPORT MATERIAL

All models

PLA / ABS / dissolvable natural PLA

SUPPORT REMOVAL

All models

Break away supports with pliers or cutters or just fingers where appropriate. PLA plastic is soluble in sodium hydroxide solution used with a heated ultrasonic cleaner (care is required with this option).

SOFTWARE

Description

All CubePro printers include complimentary conversion software. This application converts your 3D model into layered slices (G-code), ready for printing on your machine. Other features and uses of CubePro software include:Clear, familiar and easy-to-use interfaceScaling, rotating and movement of parts on a simulated print bedProven default settings for all CubePro 3D printersAbility to create custom profiles as neededImperial/metric conversion availableBuilt-in STL file verificationCombined part and tool path viewerProfiles for multiple material/support materials



COMPATIBILITY


Windows requirements

32 or 64 bit operating systems:Windows 7Windows 8Windows 8.1Windows is required for ad-hoc WiFi print job submission – if not already installed, the Cube software will automatically install the Microsoft .NET 4.0 framework

Mac OSX requirements

Mac 10.8 and up

Minimum hardware requirements

Processor: Multi-core processor – 2GHz or faster per core
System RAM: 2GB minimum
Screen resolution: 1024 x 768

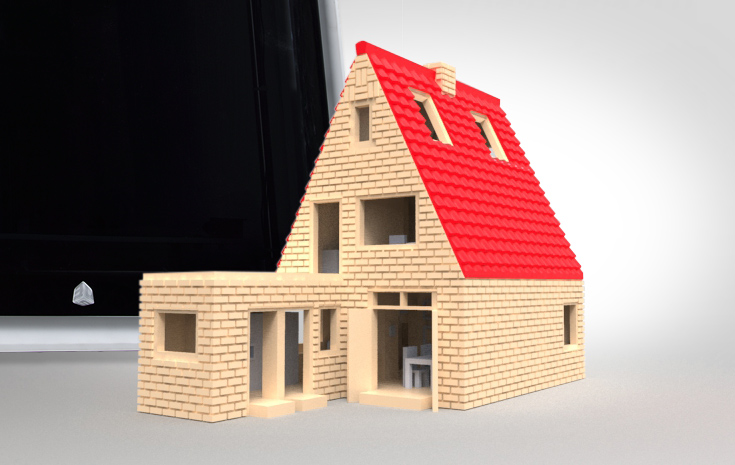

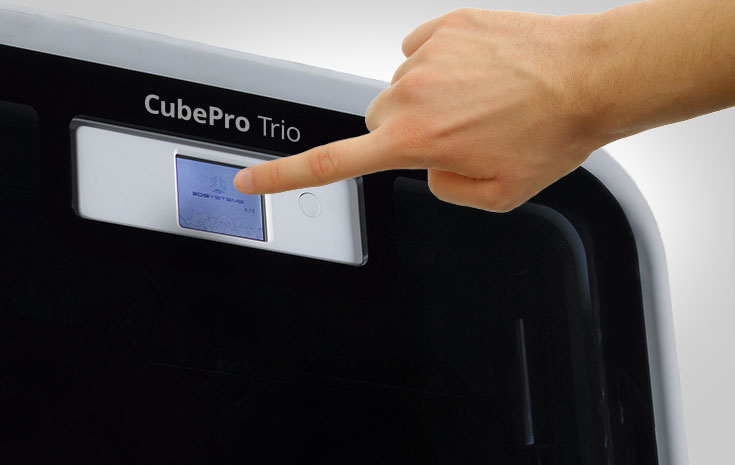

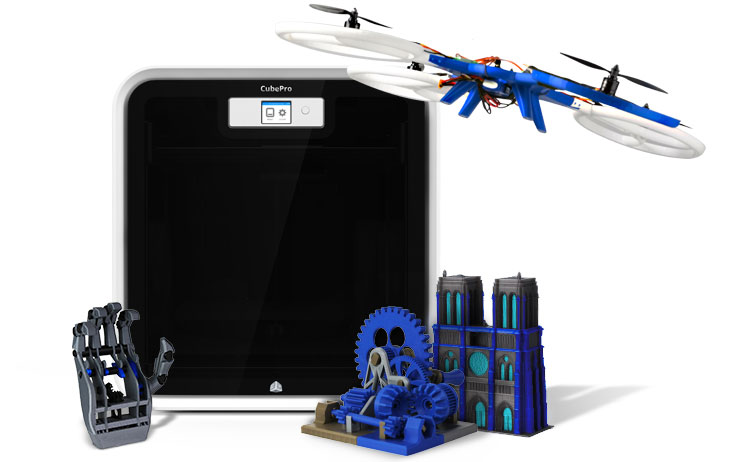

cubepro1          cubepro2

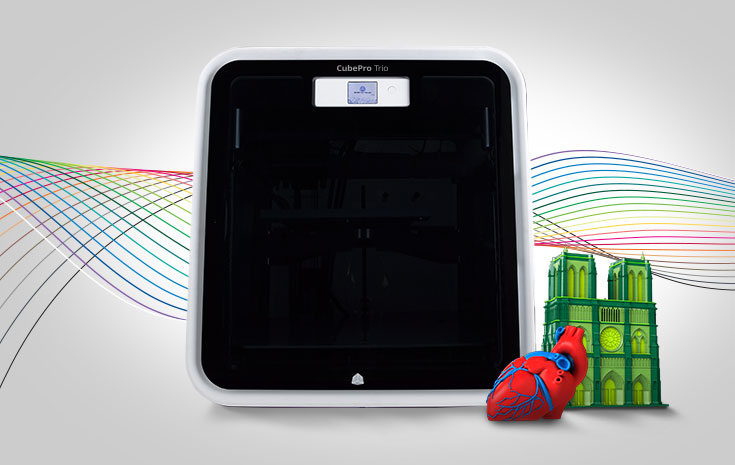

cubepro3          cubepro4
