UP MINI 2

icon-wifi-06b5ce-79wx66
Secure Wi-Fi
Hubungkan dan kendalikan mini 2 dari semua komputer atau perangkat seluler berkemampuan Wi-Fi yang menjalankan UP Studio atau Aplikasi UP Studio. Tambahkan kata sandi khusus-printer untuk keamanan pasca-sambungan tambahan untuk menjaga peretas.
icon-blackout-recovery-06b5ce-79wx66
Blackout Recovery
Jika Up mini 2 mengalami kehilangan daya, pencetakan dijeda dan titik interupsi disave. Setelah listrik kembali terbentuk, pencetakan dapat dilanjutkan dan pekerjaan cetak dapat berlanjut seolah-olah tidak ada yang terjadi.
icon-up-studio-software-06b5ce-79wx66
UP Studio Software
Powerful, yet renowned for simplicity and usability Smart-Support Technology Both software-assisted calibration and automatic calibration 3D model error detection and correction Customizable bed and nozzle temperature settings Convert 2D images into 3D images Access to Moshop Compatible with Windows 7 SP1 or later, MacOS X Importable file formats: .up3, .ups, .stl, .obj, .3mf, .ply, .off, .3ds, .gcode
icon-up-studio-app-06b5ce-79wx66
UP Studio App
Easy-to-use interface Model creation with basic building blocks via Puzzle Mode Convert 2D images into 3D images Access to Moshop Printer access via Wi-Fi Compatible with iOS 8.x or later Importable file formats: .up3, .ups, .stl
mini2-high-print-quality-1014w-300x199

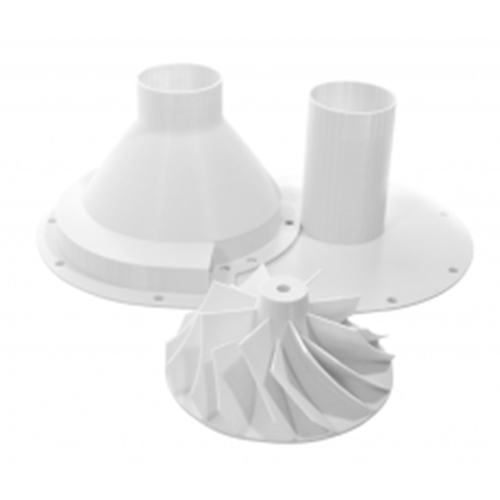

High Print Quality

You can’t get better print quality in this price range. The mini 2 prints detailed prototypes and end-use parts with minimal layer line visibility. No other 3D printer costing less than $1500 can compete with the mini 2’s ABS printing.
mini2-recirculating-hepa-791w-100q-300x255

Recirculating HEPA Filtration with Activated Carbon

Crucial for educators, the mini 2’s internal air filter radically reduces UFP (ultrafine particle) and VOC (volatile organic compound) emissions. Be confident in a classroom environment knowing your students are safe.
mini2-full-enclosure-1014x673-100q-300x199

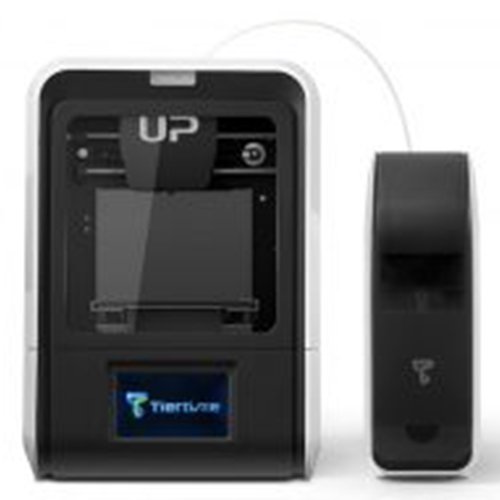

Full Enclosure

Warm air is retained within the build chamber, minimizing the risk of ABS warping while further reducing UFP and VOC environmental impact. Access is easy thanks to front and back doors, plus a lift-off top.
mini2-touch-screen-control-1014x669-100q-300x198

Touch Screen Control

An easy-to-use, 4” LCD panel puts control of your printer, configuration settings, and print progress monitoring right at your fingertips. The mini 2 is truly touch ‘n print.
mini2-interchangeable-print-surfaces-1014-655-100q-300x194

Interchangeable Print Surfaces

Choose the surface that fit yours needs and easily swap from one surface to another. UP Perf – Maximum first layer adhesion UP Flex – Medium first layer adhesion
mini2-portable-1014-663-300x196

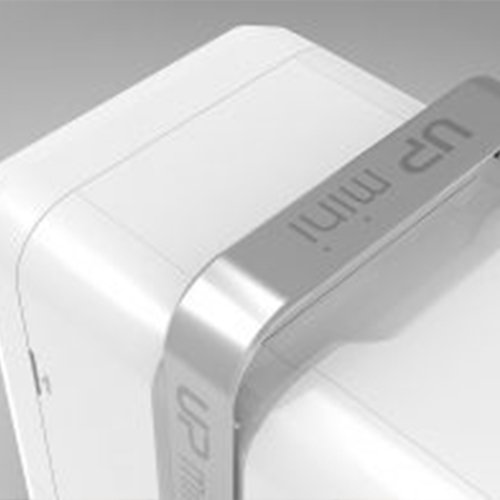

Portable

With an extendible, aluminum carrying handle and weighing just 20 pounds, transporting the mini 2 is as easy as it gets. At 15.2 by 10.2 inches, its footprint won’t eat all your workspace.
all-1014x673-300x199

Advanced Materials Options

Thanks to UP Studio’s custom nozzle and platform temperature control, the mini 2 is capable of printing with a variety of filaments to match your needs: ABS, PLA, PLA Composites, Polycarbonate, Bronze, Conductive, Nylon, Wood, ASA, PET, Flexible, Carbon Fiber and more.
powerful-software-app-and-studio-1014x673

Powerful Software

Take the headache out of printer settings. UP Studio and the UP Studio APP were created specifically for UP printers and allow you to take full advantage of their features. Set up prints, adjust smart-support creation, import a wide variety of file formats and perform standard maintenance tasks, all within an easy-to-use interface.
mini2-automatic-nozzle-height-1014-556-100q-300x164

Automatic Nozzle Height Detection with Software-Assisted Calibration

Automatically set nozzle height from the touch screen or UP Studio and perform your nine-point bed calibration routine with the guidance of UP Studio, compensating for any variation in surface height from one point to another.
warranty-ribbon-icon-med-1-300x300

One-Year Manufacturer’s Warranty

Rest easy knowing your investment is safe. Tiertime warranties all UP printers against manufacturing defects for a period of one year from the date of purchase.

SPESIFIKASI

Printing Technology MEM  (Melted Extrusion Modeling)
Build Volume 120 x 120 x 120 mm  (4.7” x 4.7” x 4.7”)
Build Chamber Passively Heated
Bed Calibration Automatic Nozzle Height, Software-Assisted
Air Filtration HEPA with Activated Carbon
Print Surface UP Perf or UP Flex, Heated
Enclosure Full
Optimum Layer Resolution 150 microns
Print Resume on Power Interrupt Yes
Touch Screen 4″ LCD
Custom Nozzle and Bed Temperature Control Yes
Filament Diameter 1.75 mm
Compatible Materials ABS, ABS+, PLA, PLA Composites, Conductive, Wood, Bronze, Flexible, Nylon, Polycarbonate, Carbon Fiber, PET, ASA and more.
Filament Spool Compatibility 500 g
Connectivity USB, Wi-Fi
Software UP Studio, UP Studio App
Software Compatibility Windows 7/8/10, Mac OS X, iOS 8.x/9.x
Machine Dimensions 255× 365 × 385 mm  (19.1″ x 20.5″ x 19.5″)
Machine Weight 8 kg (20.3 lb)
Warranty 1 Year
