SPESIFIKASI

  • Product Dimension (WxDxH)
    16.54 x 16.93 x 14.96 inch (42 x 43 x 38 cm )
  • Package Dimension
    21.53 x 22.87 x 18.7 inch (54.7 x 58.1 x 47.5 cm)
  • Gross Weight
    lbs (15kg)
  • Technology
    FFF (Fused Filament Fabrication)
  • Maximum Build Volume (WxDxH)
    5.9 x 5.9 x 5.9 inch (15x15x15cm)
  • Resolution
    Fine 0.1 mm (100 microns) Standard 0.2 mm (200 microns) Speed 0.3 mm (300 microns) Ultra Fast 0.4 mm (400 microns)
  • Print Head
    Single Nozzle
  • Maximum Printing Speed
    up to 100mm/s * Note: maximum printing speed tested by actual material extrusion speed under laboratory testing conditions, actual printing results may vary.
  • Nozzle Diameter
    0.4 mm
  • Filament Diameter
    1.75 mm
  • Filament Material
    PLA
  • Display
    2.6” FSTN LCM
  • Language
    Multi Language
  • Connectivity
    USB 2.0 / SD Card / WiFi (802.11 b/g/n) *Systems are compatible with SDHC cards up to 32GB in size
  • Software
    XYZware
  • File Types
    .stl , XYZ Format (.3w)
  • OS Support
    Windows 7 and above (for PC)
  • Hardware
    Mac OSX 10.8 and above (for Mac) Note: Stardard VGA driver on operating system, or a graphics card doesn’t support OpenGL 2.1, may cause unknown error in XYZware. Hardware Requirements (for PC/Mac) X86 32/64-bit compatible PCs with 4GB+ DRAM (for PC) X86 64-bit compatible Macs with 4GB+ DRAM (for Mac)
  • Scan Technology
    Slit Laser Triangulation
  • Scan Resolution (Diameter x H)
    3 x 3 cm – 12 x 12 cm 1.18″ x 1.18″- 4.72″ x 4.72″”
  • Turntable payload
    ≦ 3 Kg/6.6lbs
  • Scan Accuracy
    0.25mm
  • Engraving area
    15cm x 15cm 5.9″ x 5.9″
  • Laser Power
    350mW ± 10%
  • Laser Wavelength
    450nm+5nm/-10nm InGaN
  • File Types
    JPG / PNG / GIF / BM

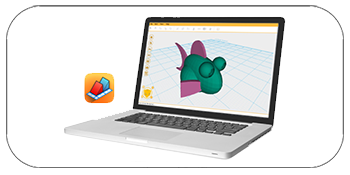

  • Laser Software
    XYZware
